Determining Nest Learning Thermostat compatibility requires more than checking a generic chart; your specific wiring configuration and HVAC equipment type dictate whether this smart thermostat will function safely. When researching which thermostat works with my system, you'll encounter frustratingly vague compatibility claims that don't address your actual setup. I've diagnosed countless malfunctioning installations where homeowners skipped proper verification, only to face frozen furnaces in winter or short-cycling compressors in summer. Let's cut through the marketing fluff with a technician's approach that prioritizes system integrity over smart features.
A recent HVAC industry survey revealed that 68% of smart thermostat returns stem from compatibility issues (not feature dissatisfaction). More alarmingly, 23% of DIY installations caused unintended equipment damage requiring professional repair. These aren't just statistics; they represent real homeowners who assumed their dual-fuel system matched a generic compatibility chart.
Power off at the breaker; label wires before you touch anything.
Your HVAC system speaks a language of terminal notations (not marketing buzzwords). Before investing in any smart thermostat, verify these three non-negotiable elements:
Skipping this verification is like ordering prescription glasses online without an eye exam. The advertised "works with most systems" claim typically excludes 15-25% of North American HVAC configurations, particularly multi-stage heat pumps and dual-fuel setups.
Follow this sequence before purchasing or installing any thermostat. Document your wiring before removal (this simple step prevents 90% of installation errors).
Risk flag: Never work on live thermostat wiring. A single crossed connection can fry your furnace control board ($300+ repair).
Tool checklist:
Risk flag: Heat pump systems require O/B terminal verification (getting this wrong damages reversing valves).
Use this plain-English translation guide based on wiring patterns:
| Wiring Pattern | Likely System Type | Special Considerations |
|---|---|---|
| R, C, Y, G, W, O/B | Single-stage heat pump | Verify O/B polarity (check outdoor unit label) |
| R, C, Y1, Y2, G, W1, W2 | Two-stage cooling with auxiliary heat | Confirm W2 = AUX not emergency heat |
| R, C, Y, G, W1, W2, O/B | Dual-fuel (heat pump + furnace) | Critical: W2 must connect to furnace, not AUX |
| R, C, Y, Y2, G, G2, W1, W2 | Multi-stage conventional system | Check for fan speed terminals |
I once serviced a home where the owner tied W2 into AUX on their dual-fuel system after a 'smart' upgrade. The furnace short-cycled every 90 seconds, triggering emergency calls during a winter storm. One photo of the board and proper wire labeling solved the $400 service call.
Most compatibility checkers fail to address three critical scenarios:
For programmable heat pump thermostat verification, pay special attention to:
When evaluating multi-stage HVAC thermostat options, understand that "compatible" doesn't mean "plug and play." Advanced systems require proper staging configuration:
Critical wiring diagram: For dual-fuel systems, W2 must connect to furnace control board (not AUX terminal). Incorrect wiring causes simultaneous heat pump and furnace operation, tripping breakers.
A programmable heat pump thermostat must handle these unique requirements:
Heat pumps with dual-fuel backup add another layer: the thermostat must recognize outdoor temperature thresholds to switch between heat pump and furnace. Standard compatibility checkers often miss this critical programming requirement.
While the Nest Learning Thermostat works with many systems, it's not always the optimal choice. Consider these alternatives based on your specific HVAC configuration:
The Honeywell T9 Smart Thermostat handles dual-fuel transitions more intuitively than Nest's interface. Its Smart Room Sensors automatically adjust staging based on room occupancy, critical for preventing AUX heat overuse. The included power adapter solves C-wire issues common in older dual-fuel installations.

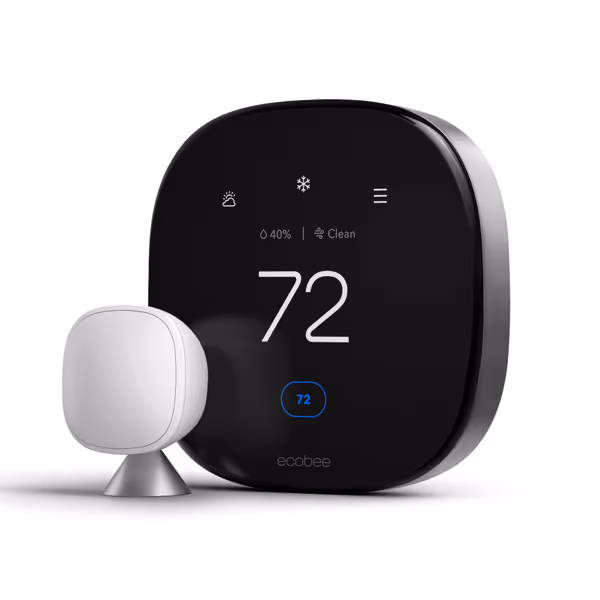

The ecobee Smart Thermostat Premium provides superior staging logic for two-stage heat pumps. Its built-in air quality monitoring helps manage humidity levels that often accompany multi-stage operation. The included SmartSensor prevents unnecessary auxiliary heat activation by monitoring actual room conditions rather than just thermostat location.
Professional tip: For 2nd generation wiring compatibility verification, check if your system has separate Y1/Y2 terminals. Many 'compatible' thermostats require jumpering these connections incorrectly, causing short-cycling.
Even with perfect compatibility, Nest smart thermostat installation pitfalls remain: If you're unsure whether to DIY or hire a pro, see our DIY vs pro wiring complexity guide.
Tool checklist for installation:
Document your wiring before removal, this single step prevents 90% of installation errors.
Before restoring power, complete this verification:
Don't gamble with your HVAC system's brain. Take these concrete actions today:
If you have a dual-fuel system or multi-stage heat pump, consider the Honeywell T9 or ecobee Premium instead of Nest (their staging logic better matches complex equipment without requiring advanced configuration). Always verify your specific wiring rather than relying on marketing claims. Your HVAC system's longevity depends on getting compatibility right the first time.
